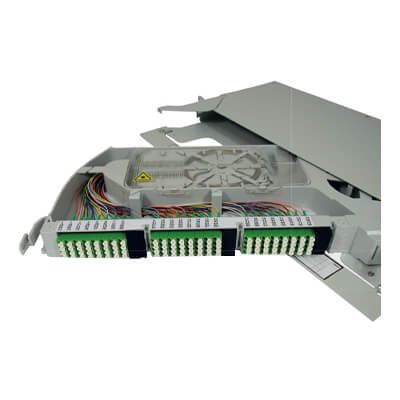

The new Optotec HD pivot tray drawer is a high-density solution suitable for splicing and terminating fibre optic cables.
The subframe consists of a metal structure available in three different sizes (Units): 1U up to 96 LC terminations; 2U up to 192 LC terminations; 3U up to 288 LC terminations.

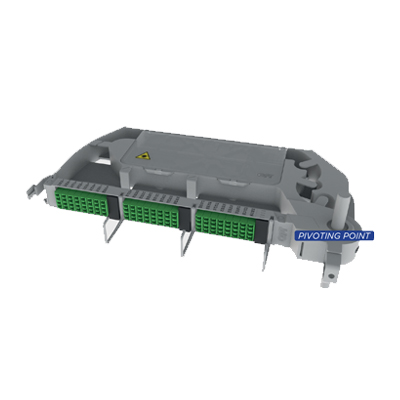

Pivot trays are mounted inside the 19” subframe, right or left fitted as required.
In this version the adapters are frontal facing. Easy access is guaranteed by the presence of Quadruplex adapters, which slide to create the space necessary to handle them without the use of additional tools.
The Optotec nPTD subframe trays can have patch&splice or termination only (patch/patch) configurations
